BK-ALU-0034-001

BK-ALU-0034-001
Product Name : BK-ALU-0034-001
Product Description

Place of Origin: Taiwan

Brand Name: Broadlake

Type: Heat Sink/ TO220, TO218

Material: AL1050, T=1.0mm

Packaging Details: Carton / Pallet


Q'ty :
  • BK-ALU-0034-001
  • BK-ALU-0034-001
Enlargement



Product Character



   BROADLAKE CO ., LTD.


  Part Number BK-ALU-0034-001
      Material AL1050 T=1.0mm
       Finish  Black Anodized
  Certification ISO9001:2015REACH, RoHS2002/95/EC
        Field

1. Stamped Heat Sink for Transistor Package

2. Electronic Components

3. Switching Power Supply

    Standard Heatsink for TO-220&TO-218 packages

    Mounted on the device by means of vertical horizontal direction

    Capability Max. 250T Press Machine
      Sample Contact us

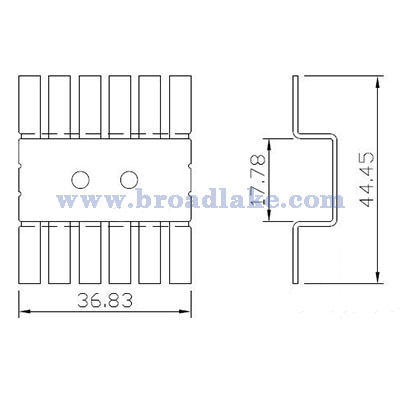

   Dimension          proimages/01-EMS/2-STAMPING_Drawing/1-只有浮水印/BK-ALU-0034-001_draw(400).jpg
