BK-ALU-0096-005

Home > Product Line > Stamped PCB Heat Sink > BK-ALU-0096-005
BK-ALU-0096-005
Product Name : BK-ALU-0096-005
Product Description

Place of Origin: Taiwan

Brand Name: Broadlake

Type: Heat Sink/ TO220, TO218

Material: AL1050, T=1.2mm

Packaging Details: Carton / Pallet


Q'ty :
    Enlargement



    Product Character


       BROADLAKE CO ., LTD.


     Part Number BK-ALU-0096-005
         Material AL1050 T=1.2mm
          Finish  Black Anodized
      Certification ISO9001, SGS, ROHS, TUV, REACH
            Field

    1. Stamped Heat Sink for Transistor Package

    2. Electronic Components

    3. Switching Power Supply

        Standard Heatsink for TO-220&TO-218 packages

        Mounted on the device by means of vertical horizontal direction
       Capability Max. 250T Press Machine
      Alloy or Not Is Alloy
         Sample Contact us

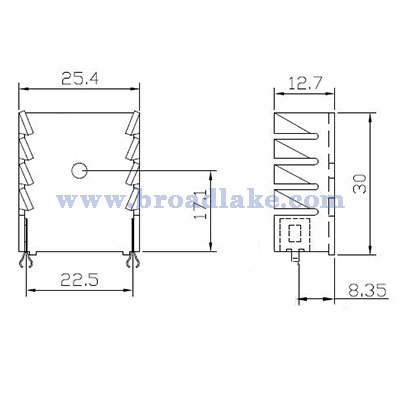

       Dimension            proimages/01-EMS/2-STAMPING_Drawing/1-只有浮水印/BK-ALU-0096-005_draw(400).jpg
