BK-T220-0053

BK-T220-0053
Product Name : BK-T220-0053
Product Description

Place of Origin: Taiwan

Brand Name: Broadlake

Type: Heat Sink/ TO220, TO218

Material: AL1050, T=1.2mm

Packaging Details: Carton / Pallet


Q'ty :
  • BK-T220-0053
  • BK-T220-0053
  • BK-T220-0053
Enlargement



Product Character



   BROADLAKE CO ., LTD.


Part Number BK-T220-0053
Material AL1050 T=1.2mm
Finish  Black Anodized
Certification ISO9001:2015REACH, RoHS2002/95/EC
Field

1. Stamped Heat Sink for Transistor Package

2. Electronic Components

3. Switching Power Supply

    Standard Heatsink for TO-220&TO-218 packages

    Mounted on the device by means of vertical horizontal direction

Capability Max. 250T Press Machine
Alloy or Not Is Alloy
Temper T3-T8
Sample Contact us

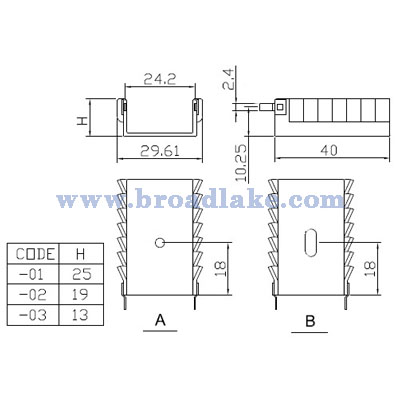

Dimension           proimages/01-EMS/2-STAMPING_Drawing/1-只有浮水印/BK-T220-0053_draw(400).jpg
