BK-T220-0060-06

BK-T220-0060-06
Product Name : BK-T220-0060-06
Product Description

Place of Origin: Taiwan

Brand Name: Broadlake

Type: Heat Sink/ TO220, TO218

Material: AL5052, T=0.8mm

Packaging Details: Carton / Pallet


Q'ty :
    Enlargement



    Product Character



        BROADLAKE CO ., LTD.


     Part Number BK-T220-0060-06
         Material AL5052 T=0.8mm
          Finish  Black Anodized
     Certification ISO9001:2015REACH, RoHS2002/95/EC
           Field

    1. Stamped Heat Sink for Transistor Package

    2. Electronic Components

    3. Switching Power Supply

        Standard Heatsink for TO-220&TO-218 packages

        Mounted on the device by means of vertical horizontal direction

       Capability Max. 250T Press Machine
         Sample Contact us

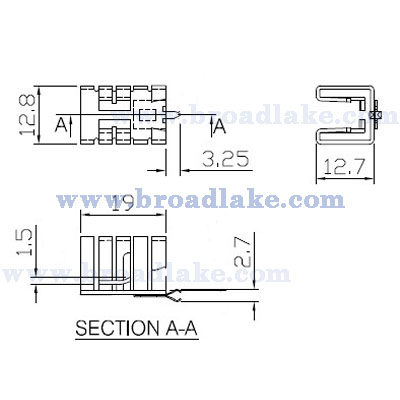

       Dimension          proimages/01-EMS/2-STAMPING_Drawing/1-只有浮水印/BK-T220-0060-06_draw(400).jpg
