BK-ALU-0019-004

BK-ALU-0019-004
Product Name : BK-ALU-0019-004
Product Description

Place of Origin: Taiwan

Brand Name: Broadlake

Type: Heat Sink/ TO220, TO218

Material: AL5052, T=0.8mm

Packaging Details: Carton / Pallet


Q'ty :
    Enlargement



    Product Character



        BROADLAKE CO ., LTD.


      Part Number   BK-ALU-0019-004
          Material  AL5052 T=0.8mm
           Finish   Black Anodized
      Certification  ISO9001, SGS, ROHS, TUVREACH
            Field

     1. Stamped Heat Sink for Transistor Package

     2. Electronic Components

     3. Switching Power Supply

         Standard Heatsink for TO-220&TO-218 packages

         Mounted on the device by means of vertical horizontal direction

        Capability  Max. 250T Press Machine
          Sample  Contact us

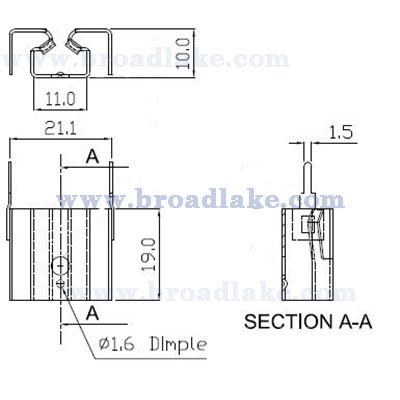

       Dimension           proimages/01-EMS/2-STAMPING_Drawing/1-只有浮水印/BK-ALU-0019-004_draw(400).jpg
