BK-T220-0039-01

BK-T220-0039-01
Product Name : BK-T220-0039-01
Product Description

Place of Origin: Taiwan

Brand Name: Broadlake

Type: Heat Sink/ TO220, TO218

Material: AL1050, T=1.2mm

Packaging Details: Carton / Pallet


Q'ty :
    Enlargement



    Product Character



        BROADLAKE CO ., LTD.


     Part Number  BK-T220-0039-01
         Material  AL1050 T=1.2mm
           Finish   Black Anodized
     Certification  ISO9001, SGS, ROHS, TUV, REACH
            Field

     1. Stamped Heat Sink for Transistor Package

     2. Electronic Components

     3. Switching Power Supply

         Standard Heatsink for TO-220&TO-218 packages

         Mounted on the device by means of vertical horizontal direction

       Capability  Max. 250T Press Machine
      Alloy or Not  Is Alloy
          Temper  T3-T8
          Sample  Contact us

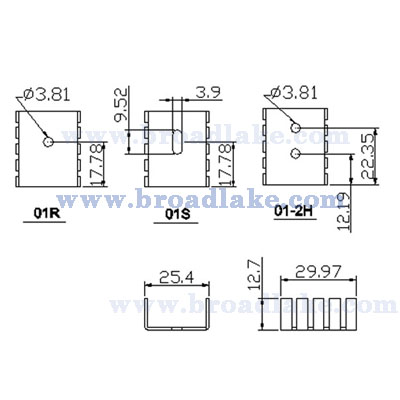

       Dimension         proimages/01-EMS/2-STAMPING_Drawing/1-只有浮水印/BK-T220-0039-01_draw(400).jpg
