Product Name : BK-T220-0228-01A
Product Description

Place of Origin: Taiwan

Brand Name: Broadlake

Type: Heat Sink/ TO220, TO218

Material: AL5052, T=0.8mm

Packaging Details: Carton / Pallet

Q'ty :


    Product Character


        BROADLAKE CO ., LTD.

     Part Number  BK-T220-0228-01A
         Material  AL5052 T=0.8mm
          Finish   Black Anodized
     Certification  ISO9001, SGS, ROHS, TUV, REACH

     1. Stamped Heat Sink for Transistor Package

     2. Electronic Components

     3. Switching Power Supply

         Standard Heatsink for TO-220&TO-218 packages

         Mounted on the device by means of vertical horizontal direction

       Capability  Max. 250T Press Machine
         Sample  Contact us

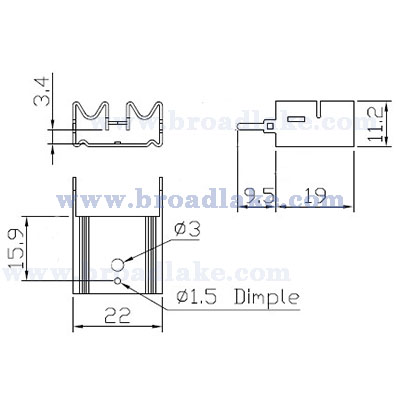

       Dimension        proimages/01-EMS/2-STAMPING_Drawing/1-只有浮水印/BK-T220-0228-01X_draw(400).jpg
